弊社では各種の高密度技術を確立しました。狭額縁、薄型、軽量化を実現します。

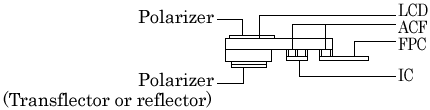

COG Chip on glass
Connecting Method: Heat and pressure fitting (ACF), Heatseal or Fpc or Rubber of Socket or Pin.
Enable high resolution display. Save mounting space. A thin structure can be achieved.

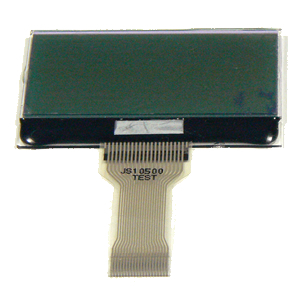

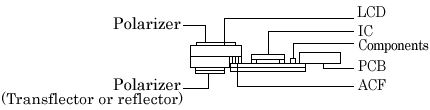

COF Chip on flexible-PCB
Connecting Method: Heat and pressure fitting (ACF), Soldering or mechanical compression or Plug in with socket or Heat and Pressure fitting (ACF).
Desired design for LCD&FPC. Enable high resolution display. Save mounting space. Ultra thin structure can be achieved. Fine bending flexibility.

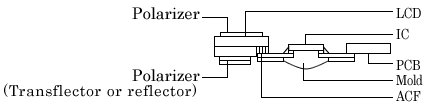

TCP Tape carrier package. (with driver)
Connected Method: Heat and pressure fitting (ACF), soldering.
Enable high resolution display. A thin structure can be achieved.
